Kabel distribusi daya
Kabel Distribusi Daya sing bisa dipercaya kanggo Pasokan Energi sing Efisien
NYY Low voltase Tembaga Konduktor PVC Insulated Power Kabel
Taitong Cable didegaké ing 2002, punika Produsèn anjog saka Low voltaged Tembaga Conductor PVC Insulated Power Kabel ing China.Headquartered ing Hejian, Provinsi Hebei, perusahaan isine area 70.000 m2 karo ibukutha kadhaptar saka RMB 1 milyar Sawise luwih saka 20 taun wutah anteng, Taitong produksi saiki ngoperasikaké papat mo, Taitong basis produksi ing saindhenging China. layanan pelanggan efisien.
1. Pengenalan produk
Kabel distribusi daya voltase sing dirating Taitong, kompatibel karo voltase operasi sing dirating 1KV (Um = 1.2KV) lan 3KV (Um = 3.6KV), 0.6 / 1kV NYY Cu / PVC / PVC Low Voltaged Copper Conductor PVC Insulated Power Kabel bakal dadi pilihan sing paling apik kanggo bangunan listrik voltase rendah kayata jaringan distribusi, fasilitas industri lan komersial. PVC Insulated PVC Sheathed Power Cable, Aluminium Conductor PVC/PVC Cable, PVC/PVC Steel Tape Armored Cable, Aluminium PVC/PVC Steel Tape Armored Cable, Tembaga SWA Armored Power Cable, diproduksi dengan bahan konduktor yang dibutuhkan, lapisan insulasi dan sheaths, yang menunjukkan keunggulan produk dalam produk transmisi, kinerja mechanical kuwat lan umur layanan dawa kanthi aman, operasi dipercaya.
Cathetan: Gambar nuduhake kategori umum kabel daya, dene judhul nuduhake spesifikasi tartamtu.
We offer sawetara lengkap model kabel daya, hubungi kita kanggo opsi liyane.
Kabel NYY 0,6/1kV GB:VV - IEC:Cu/PVC/PVC
2. Spesifikasi Produk
| 0.6/1kV-1 inti tembaga konduktor PVC terisolasi PVC kabel daya sheathed | |||||||
| Jumlah inti lan bagean salib nominal | Ketebalan Isolasi | Ketebalan Sarung | Kira-kira. sakabèhé Diameter | Kira-kira. bobot | Maks. Resistansi DC saka konduktor (20 ℃) | Kapasitas mbeta saiki | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | Ing Udara (A) | Ing lemah (A) |
| 1X10 | 1.0 | 1.4 | 8.6 | 159 | 1.83 | 55 | 84 |
| 1X16 | 1.0 | 1.4 | 9.6 | 225 | 1.15 | 74 | 110 |
| 1X25 | 1.2 | 1.4 | 11.2 | 321 | 0.727 | 95 | 135 |
| 1X35 | 1.2 | 1.4 | 12.2 | 418 | 0.524 | 115 | 165 |
| 1X50 | 1.4 | 1.4 | 13.6 | 552 | 0.387 | 140 | 195 |
| 1X70 | 1.4 | 1.4 | 15.5 | 754 | 0.268 | 180 | 240 |
| 1x95 | 1.6 | 1.5 | 17.7 | 1020 | 0.193 | 220 | 290 |
| 1X120 | 1.6 | 1.5 | 19.1 | 1268 | 0.153 | 255 | 325 |
| 1X150 | 1.8 | 1.6 | 21 | 1584 | 0.124 | 295 | 370 |
| 1X185 | 2.0 | 1.7 | 23.3 | 1942 | 0.0991 | 340 | 420 |
| 1X240 | 2.2 | 1.8 | 26.2 | 2514 | 0.0754 | 405 | 485 |
| 1x300 | 2.4 | 1.9 | 29 | 3127 | 0.0601 | 470 | 550 |
| 1x400 | 2.6 | 2 | 32.3 | 4054 | 0.047 | 550 | 630 |
| 1x500 | 2.8 | 2.1 | 36.2 | 5164 | 0.0366 | 635 | 715 |
| 1X630 | 2.8 | 2.2 | 40 | 6431 | 0.0283 | 735 | 820 |
| 0.6/1kV-2 inti tembaga konduktor PVC terisolasi PVC kabel daya sheathed | |||||||
| Jumlah inti lan bagean salib nominal | Ketebalan Isolasi | Ketebalan Sarung | Kira-kira. sakabèhé Diameter | Kira-kira. bobot | Maks. Resistansi DC saka konduktor (20 ℃) | Kapasitas mbeta saiki | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | Ing Udara (A) | Ing lemah (A) |
| 2X2.5 | 0.8 | 1.8 | 10.9 | 149 | 7.41 | 25 | - |
| 2X4 | 1 | 1.8 | 12.7 | 228 | 4.61 | 33 | - |
| 2x6 | 1 | 1.8 | 13.7 | 278 | 3.08 | 42 | - |
| 2X10 | 1 | 1.8 | 16.2 | 380 | 1.83 | 58 | 84 |
| 2X16 | 1 | 1.8 | 18.4 | 530 | 1.15 | 76 | 110 |
| 2X25 | 1.2 | 1.8 | 21.7 | 754 | 0.727 | 98 | 140 |
| 2X35 | 1.2 | 1.8 | 23.0 | 962 | 0.524 | 120 | 175 |
| 2X50 | 1.4 | 1.8 | 26.4 | 1274 | 0.387 | 145 | 205 |
| 2x70 | 1.4 | 1.9 | 29.7 | 1724 | 0.268 | 185 | 255 |
| 2x95 | 1.6 | 2.0 | 34.2 | 2333 | 0.193 | 230 | 305 |
| 2X120 | 1.6 | 2.1 | 37.2 | 2886 | 0.153 | 265 | 350 |
| 2X150 | 1.8 | 2.2 | 41.2 | 3601 | 0.124 | 305 | 390 |
| 2X185 | 2 | 2.4 | 45.5 | 4415 | 0.0991 | 350 | 440 |
| 0.6/1kV-3 inti tembaga konduktor PVC terisolasi PVC kabel daya sheathed | |||||||
| Jumlah inti lan bagean salib nominal | Ketebalan Isolasi | Ketebalan Sarung | Kira-kira. sakabèhé Diameter | Kira-kira. bobot | Maks. Resistansi DC saka konduktor (20 ℃) | Kapasitas mbeta saiki | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | Ing Udara (A) | Ing lemah (A) |
| 3X2.5 | 0.8 | 1.8 | 11.4 | 184 | 7.41 | 21 | - |
| 3X4 | 1.0 | 1.8 | 13.3 | 263 | 4.61 | 28 | - |
| 3x6 | 1.0 | 1.8 | 14.5 | 337 | 3.08 | 36 | - |
| 3X10 | 1.0 | 1.8 | 17.1 | 495 | 1.83 | 49 | 72 |
| 3X16 | 1.0 | 1.8 | 19.5 | 703 | 1.15 | 66 | 94 |
| 3X25 | 1.2 | 1.8 | 23.1 | 1010 | 0.727 | 84 | 120 |
| 3X35 | 1.2 | 1.8 | 24.5 | 1311 | 0.524 | 100 | 145 |
| 3X50 | 1.4 | 1.8 | 28.2 | 1746 | 0.387 | 125 | 175 |
| 3x70 | 1.4 | 1.9 | 31.8 | 2390 | 0.268 | 160 | 210 |
| 3x95 | 1.6 | 2.1 | 36.6 | 3247 | 0.193 | 195 | 255 |
| 3X120 | 1.6 | 2.2 | 39.9 | 4034 | 0.153 | 235 | 295 |
| 3X150 | 1.8 | 2.3 | 44.2 | 5044 | 0.124 | 260 | 330 |
| 3X185 | 2 | 2.5 | 48.8 | 6191 | 0.0991 | 305 | 370 |
| 3X240 | 2.2 | 2.7 | 55.0 | 8031 | 0.0754 | 360 | 425 |
| 3X300 | 2.4 | 2.8 | 60.8 | 9989 | 0.0601 | 410 | 480 |
| 0.6/1kV-4 inti tembaga konduktor PVC terisolasi PVC kabel daya sheathed | |||||||
| Jumlah inti lan bagean salib nominal | Ketebalan Isolasi | Ketebalan Sarung | Kira-kira. sakabèhé Diameter | Kira-kira. bobot | Maks. Resistansi DC saka konduktor (20 ℃) | Kapasitas mbeta saiki | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | Ing Udara (A) | Ing lemah (A) |
| 4X2.5 | 0.8 | 1.8 | 12.3 | 223 | 7.41 | 21 | - |
| 4X4 | 1 | 1.8 | 14.4 | 325 | 4.61 | 28 | - |
| 4x6 | 1 | 1.8 | 15.7 | 421 | 3.08 | 36 | - |
| 4X10 | 1 | 1.8 | 18.7 | 624 | 1.83 | 49 | 72 |
| 4X16 | 1 | 1.8 | 21.3 | 895 | 1.15 | 66 | 94 |
| 4X25 | 1.2 | 1.8 | 25.3 | 1293 | 0.727 | 84 | 120 |
| 4X35 | 1.2 | 1.8 | 26.9 | 1690 | 0.524 | 100 | 145 |
| 4X50 | 1.4 | 1.9 | 31.2 | 2271 | 0.387 | 125 | 175 |
| 4x70 | 1.4 | 2.0 | 35.3 | 3117 | 0.268 | 160 | 210 |
| 4x95 | 1.6 | 2.2 | 40.7 | 4241 | 0.193 | 195 | 255 |
| 4X120 | 1.6 | 2.3 | 44.3 | 5276 | 0.153 | 235 | 295 |
| 4X150 | 1.8 | 2.5 | 49.2 | 6603 | 0.124 | 260 | 330 |
| 4X185 | 2 | 2.6 | 54.4 | 8111 | 0.0991 | 305 | 370 |
| 4X240 | 2.2 | 2.9 | 61.3 | 10531 | 0.0754 | 360 | 425 |
| 4X300 | 2.4 | 3.1 | 67.8 | 13109 | 0.0601 | 410 | 480 |
| 0.6/1kV-5 inti tembaga konduktor PVC terisolasi PVC kabel daya sheathed | |||||||
| Jumlah inti lan bagean salib nominal | Ketebalan Isolasi | Ketebalan Sarung | Kira-kira. sakabèhé Diameter | Kira-kira. bobot | Maks. Resistansi DC saka konduktor (20 ℃) | Kapasitas mbeta saiki | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | Ing Udara (A) | Ing lemah (A) |
| 5X2.5 | 0.8 | 1.8 | 13.3 | 274 | 7.41 | 21 | - |
| 5x4 | 1 | 1.8 | 15.6 | 397 | 4.61 | 28 | - |
| 5x6 | 1 | 1.8 | 17.1 | 508 | 3.08 | 36 | - |
| 5X10 | 1 | 1.8 | 20.4 | 768 | 1.83 | 49 | 72 |
| 5X16 | 1 | 1.8 | 23.4 | 1095 | 1.15 | 66 | 94 |
| 5X25 | 1.2 | 1.8 | 27.9 | 1589 | 0.727 | 84 | 120 |
| 5X35 | 1.2 | 1.9 | 29.7 | 2091 | 0.524 | 100 | 145 |
| 5X50 | 1.4 | 2.0 | 34.6 | 2818 | 0.387 | 125 | 175 |
| 5x70 | 1.4 | 2.2 | 39.2 | 3873 | 0.268 | 160 | 210 |
| 5x95 | 1.6 | 2.3 | 45.2 | 5275 | 0.193 | 195 | 255 |
| 5X120 | 1.6 | 2.5 | 49.3 | 6567 | 0.153 | 235 | 295 |
| 5X150 | 1.8 | 2.6 | 54.8 | 8222 | 0.124 | 260 | 330 |
| 5X185 | 2 | 2.8 | 60.5 | 10104 | 0.0991 | 305 | 370 |
| 5X240 | 2.2 | 3.1 | 68.3 | 13124 | 0.0754 | 360 | 425 |
| 5X300 | 2.4 | 3.3 | 75.5 | 16342 | 0.0601 | 410 | 480 |
| 0,6 / 1kV-3 + 1 inti konduktor tembaga PVC terisolasi kabel daya sarung PVC | |||||||
| Jumlah inti lan bagean salib nominal | Ketebalan Isolasi | Ketebalan Sarung | Kira-kira. sakabèhé Diameter | Kira-kira. bobot | Maks. Resistansi DC saka konduktor (20 ℃) | Kapasitas mbeta saiki | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | Ing Udara (A) | Ing lemah (A) |
| 3*4+1*2.5 | 1.0/0.8 | 1.8 | 13.9 | 500 | 4.61/7.41 | 28 | - |
| 3*6+1*4 | 1.0/1.0 | 1.8 | 15.4 | 397 | 3.08/4.61 | 36 | - |
| 3*10+1*6 | 1.0/1.0 | 1.8 | 18.0 | 573 | 1.83/3.08 | 49 | 72 |
| 3*16+1*10 | 1.0/1.0 | 1.8 | 20.7 | 827 | 1.15/1.83 | 66 | 94 |
| 3*25+1*16 | 1.2/1.0 | 1.8 | 24.4 | 1219 | 0.727/1.15 | 84 | 120 |
| 3*35+1*16 | 1.2/1.0 | 1.8 | 25.6 | 1502 | 0.524/1.15 | 100 | 145 |
| 3*50+1*25 | 1.4/1.2 | 1.9 | 29.8 | 2042 | 0.387/0.727 | 125 | 175 |
| 3*70+1*35 | 1.4/1.2 | 2.0 | 33.3 | 2784 | 0.268/0.524 | 160 | 210 |
| 3*95+1*50 | 1.6/1.4 | 2.1 | 38.4 | 3761 | 0.193/0.387 | 195 | 255 |
| 3*120+1*70 | 1.6/1.4 | 2.2 | 42.2 | 4748 | 0.153/0.268 | 235 | 295 |
| 3*150+1*70 | 1.8/1.4 | 2.4 | 45.9 | 5638 | 0.124/0.268 | 260 | 330 |
| 3*185+1*95 | 2.0/1.6 | 2.5 | 51.0 | 7166 | 0.0991/0.193 | 305 | 370 |
| 3*240+1*120 | 2.2/1.6 | 2.7 | 57.2 | 9193 | 0.0754/0.153 | 360 | 425 |
| 3*300+1*150 | 2.4/1.8 | 2.9 | 63.3 | 11452 | 0,0601/0,124 | 410 | 480 |
| 0,6 / 1kV-4 + 1 inti tembaga konduktor PVC terisolasi kabel daya sheathed PVC | |||||||
| Jumlah inti lan bagean salib nominal | Ketebalan Isolasi | Ketebalan Sarung | Kira-kira. sakabèhé Diameter | Kira-kira. bobot | Maks. Resistansi DC saka konduktor (20 ℃) | Kapasitas mbeta saiki | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | Ing Udara (A) | Ing lemah (A) |
| 4*4+1*2.5 | 1.0/0.8 | 1.8 | 15.2 | 365 | 4.61/7.41 | 28 | - |
| 4*6+1*4 | 1.0/1.0 | 1.8 | 16.8 | 484 | 3.08/4.61 | 36 | - |
| 4*10+1*6 | 1.0/1.0 | 1.8 | 19.7 | 707 | 1.83/3.08 | 49 | 72 |
| 4*16+1*10 | 1.0/1.0 | 1.8 | 22.8 | 1026 | 1.15/1.83 | 66 | 94 |
| 4*25+1*16 | 1.2/1.0 | 1.8 | 27.0 | 1505 | 0.727/1.15 | 84 | 120 |
| 4*35+1*16 | 1.2/1.0 | 1.8 | 28.4 | 1883 | 0.524/1.15 | 100 | 145 |
| 4*50+1*25 | 1.4/1.2 | 2.0 | 33.2 | 2587 | 0.387/0.727 | 125 | 175 |
| 4*70+1*35 | 1.4/1.2 | 2.1 | 37.3 | 3525 | 0.268/0.524 | 160 | 210 |
| 4*95+1*50 | 1.6/1.4 | 2.3 | 43.1 | 4848 | 0.193/0.387 | 195 | 255 |
| 4*120+1*70 | 1.6/1.4 | 2.4 | 47.3 | 6063 | 0.153/0.268 | 235 | 295 |
| 4*150+1*70 | 1.8/1.4 | 2.5 | 51.6 | 7224 | 0.124/0.268 | 260 | 330 |
| 4*185+1*95 | 2.0/1.6 | 2.7 | 57.5 | 9126 | 0.0991/0.193 | 305 | 370 |
| 4*240+1*120 | 2.2/1.6 | 3.0 | 64.5 | 11778 | 0.0754/0.153 | 360 | 425 |
| 4*300+1*150 | 2.4/1.8 | 3.2 | 71.4 | 14645 | 0,0601/0,124 | 410 | 480 |
| 0,6 / 1kV-3 + 2 inti tembaga konduktor PVC terisolasi kabel daya sheathed PVC | |||||||
| Jumlah inti lan bagean salib nominal | Ketebalan Isolasi | Ketebalan Sarung | Kira-kira. sakabèhé Diameter | Kira-kira. bobot | Maks. Resistansi DC saka konduktor (20 ℃) | Kapasitas mbeta saiki | |
| (mm2) | (mm) | (mm) | (mm) | (kg/km) | (Ω/km) | Ing Udara (A) | Ing lemah (A) |
| 3*4+2*2.5 | 1.0/0.8 | 1.8 | 14.7 | 341 | 4.61/7.41 | 28 | - |
| 3*6+2*4 | 1.0/1.0 | 1.8 | 16.5 | 461 | 3.08/4.61 | 36 | - |
| 3*10+2*6 | 1.0/1.0 | 1.8 | 19.0 | 657 | 1.83/3.08 | 49 | 72 |
| 3*16+2*10 | 1.0/1.0 | 1.8 | 22.2 | 959 | 1.15/1.83 | 66 | 94 |
| 3*25+2*16 | 1.2/1.0 | 1.8 | 26.0 | 1399 | 0.727/1.15 | 84 | 120 |
| 3*35+2*16 | 1.2/1.0 | 1.8 | 27.0 | 1680 | 0.524/1.15 | 100 | 145 |
| 3*50+2*25 | 1.4/1.2 | 1.9 | 32.0 | 2331 | 0.387/0.727 | 125 | 175 |
| 3*70+2*35 | 1.4/1.2 | 2.0 | 35.4 | 3162 | 0.268/0.524 | 160 | 210 |
| 3*95+2*50 | 1.6/1.4 | 2.2 | 41.0 | 4318 | 0.193/0.387 | 195 | 255 |
| 3*120+2*70 | 1.6/1.4 | 2.3 | 45.3 | 5498 | 0.153/0.268 | 235 | 295 |
| 3*150+2*70 | 1.8/1.4 | 2.4 | 48.5 | 6379 | 0.124/0.268 | 260 | 330 |
| 3*185+2*95 | 2.0/1.6 | 2.6 | 54.4 | 8168 | 0.0991/0.193 | 305 | 370 |
| 3*240+2*120 | 2.2/1.6 | 2.8 | 60.7 | 10462 | 0.0754/0.153 | 360 | 425 |
| 3*300+2*150 | 2.4/1.8 | 3.0 | 67.2 | 12956 | 0,0601/0,124 | 410 | 480 |

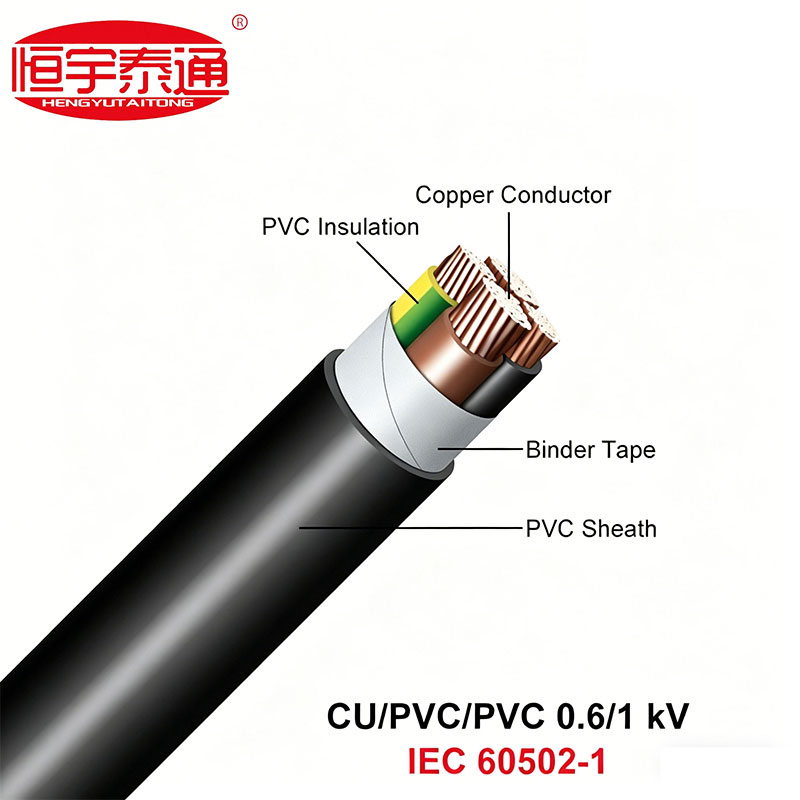

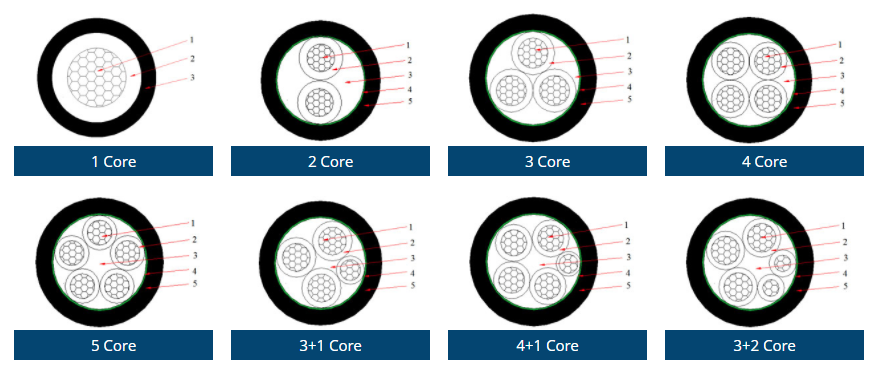

Struktur produk:
Konduktor (CU): Tembaga anil polos, biasane terdampar (Kelas 2) kanggo keluwesan lan konduktivitas, sanajan konduktor padhet (Kelas 1) bisa digunakake kanggo ukuran sing luwih cilik.
Insulasi (PVC): Lapisan utama Polyvinyl Chloride (PVC) nglindhungi saben inti individu.
Sarung (PVC): Lapisan njaba PVC nyedhiyakake jaket protèktif pungkasan marang kelembapan, bahan kimia, lan abrasi.
Rating Tegangan: Rated kanggo 600V (phase-to-earth) lan 1000V (phase-to-phase).
3. Standar Referensi
Kunci Standar Internasional sing cocog
IEC 60228Konduktor
IEC 60502-1Kabel daya kanthi insulasi ekstrusi lan aksesoris kanggo voltase dirating saka 1kV(Um=1.2kV) nganti 35kV(Um=40.5kV) - Bagean 1: Kabel kanggo voltase dirating 1 kV(Um=1.2kV) lan 3 kV(Um=3.6kV)
4. Fitur Produk lan Aplikasi
Konduktor Tembaga tegangan rendah PVC Kabel Daya Insulated dirancang kanggo instalasi tetep sing ora ana risiko karusakan mekanik sing signifikan:
Omah lan Komersial: Kabel internal, sistem saluran, lan sumber daya utama kanggo HVAC utawa motor elevator.
Industri: Sumber daya kanggo motor, pindah pindah, lan panel kontrol ing tanduran.
Infrastruktur: Jaringan listrik kutha, lampu jalan, lan instalasi ing saluran kabel utawa terowongan.
Lingkungan: Cocog kanggo panggunaan njero ruangan lan ruangan, lan bisa dilebokake langsung ing lemah utawa ing beton
5. Kapasitas Produksi
Taitong Cable minangka produsen terkemuka sing spesialisasine ing produksi kabel listrik lan kabel listrik kanthi skala gedhe. Dilengkapi fasilitas manufaktur lan tes canggih, kita nyedhiyakake seri lengkap produk kabel sing dirancang kanggo nyukupi panjaluk infrastruktur global lan proyek industri.
6. Kaluwihan Rega
Taitong nyedhiyakake rega sing kompetitif kanggo Kabel Daya Insulasi Tembaga Tembaga Tembaga Low Voltaged liwat manufaktur skala gedhe lan rantai pasokan global sing ramping. Kanthi nggunakake penjualan pabrik langsung, kita ngilangi markup perantara, ngirit biaya sing signifikan kanggo para klien ing sektor industri lan infrastruktur.
7. Filosofi Lingkungan Kabel Taitong
Taitong Cable darmabakti kanggo nggawe lan nyediakake produk kabel sing ramah lingkungan lan berkualitas tinggi nalika ngembangake ekosistem industri sing lestari lan rendah karbon. Kita kanthi ketat ngetutake proses produksi sing cocog karo lingkungan, kanthi aktif nggunakake bahan sing bisa didaur ulang, lan terus-terusan nyuda emisi karbon lan limbah industri sing cocog karo standar ISO 14001.
Komitmen kita yaiku nyedhiyakake solusi kabel sing dipercaya lan lestari sing ndhukung tujuan lingkungan global lan nyepetake transformasi ijo industri kabel.
